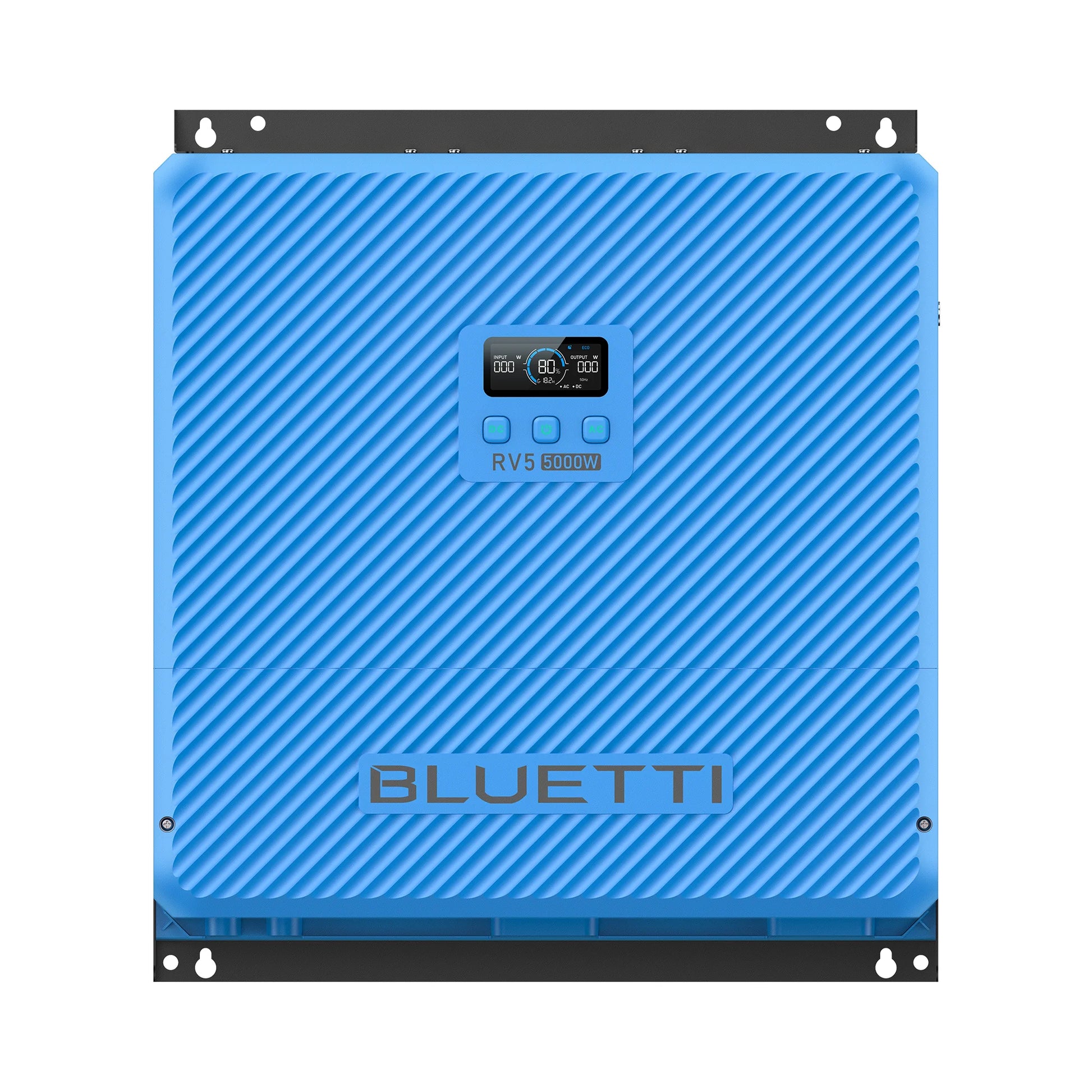

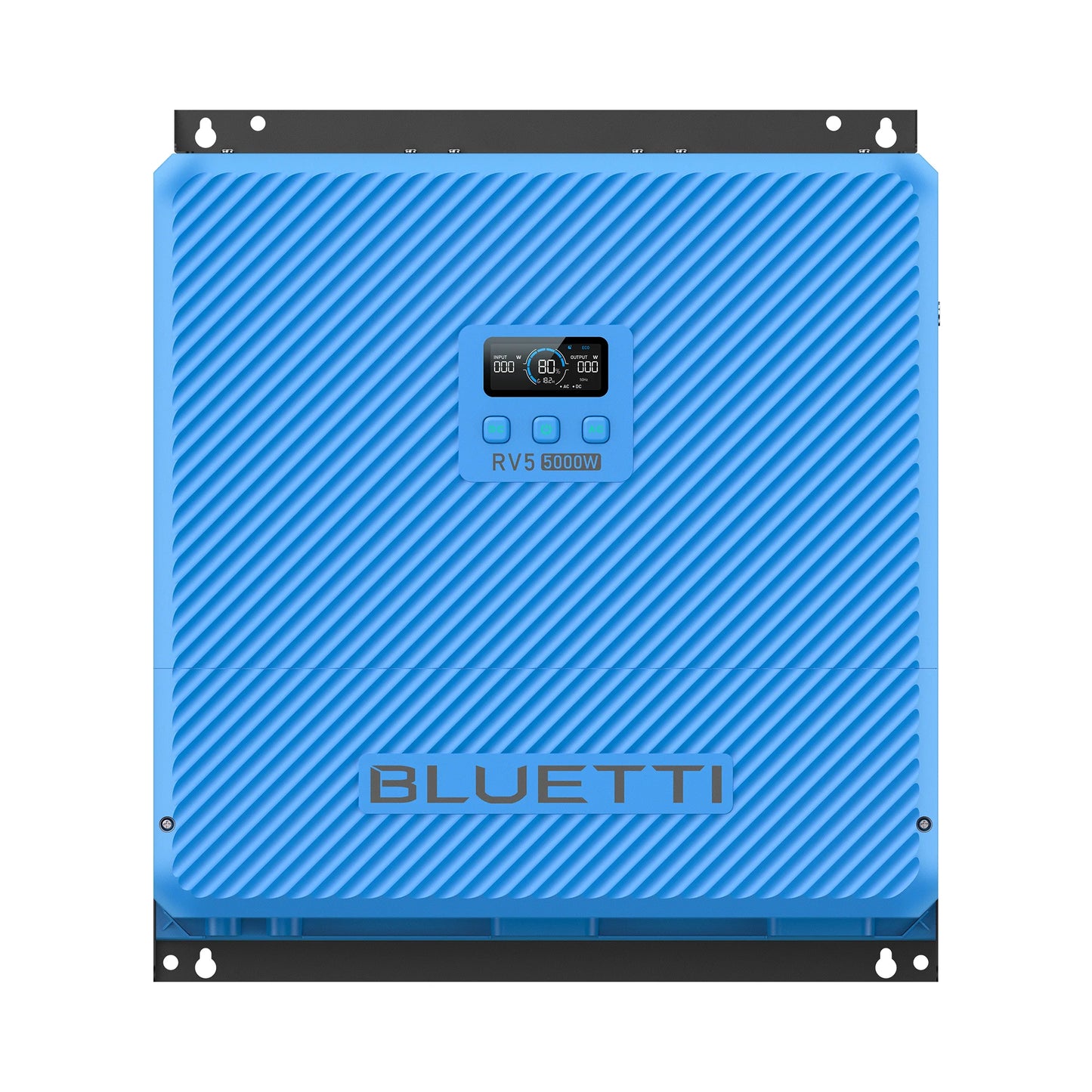

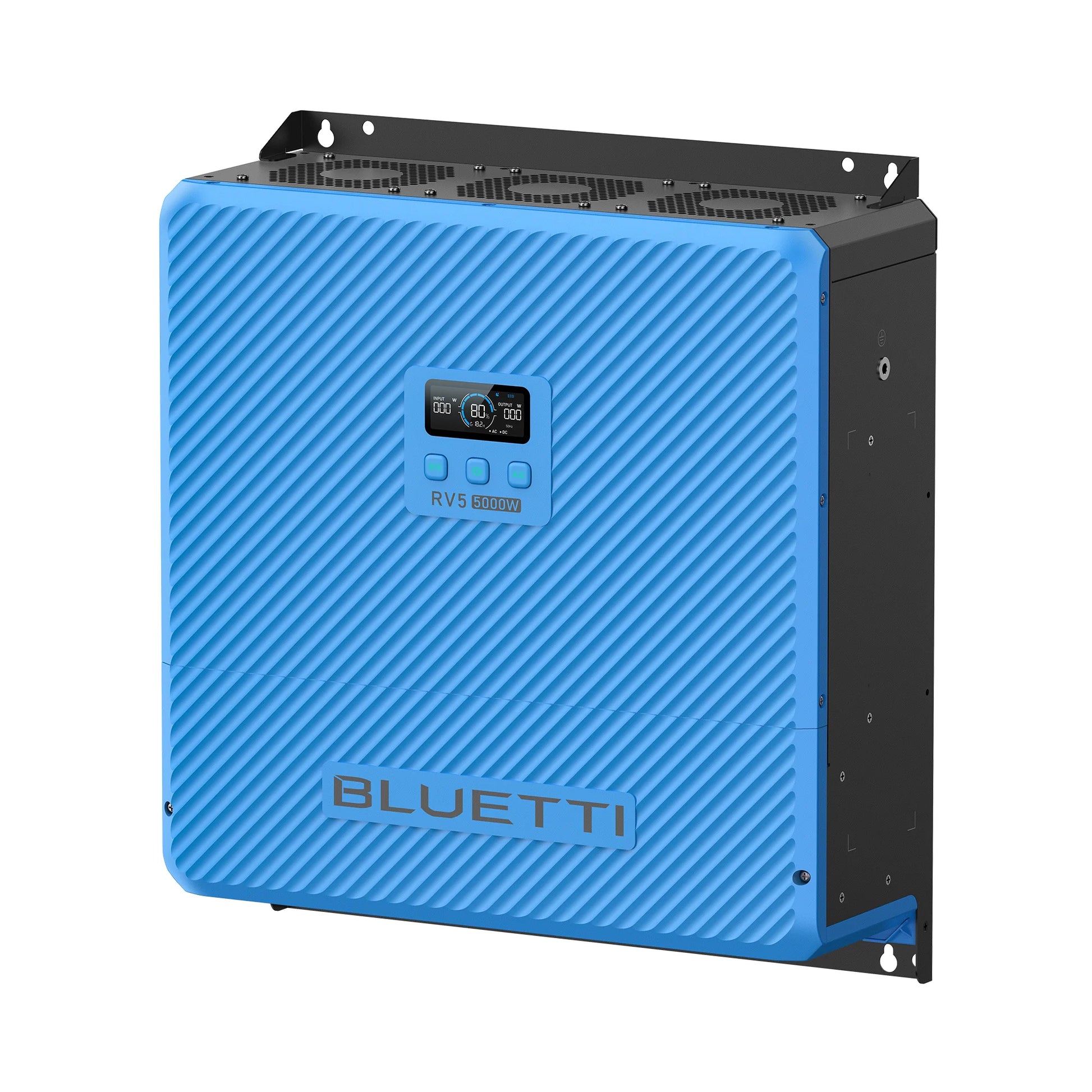

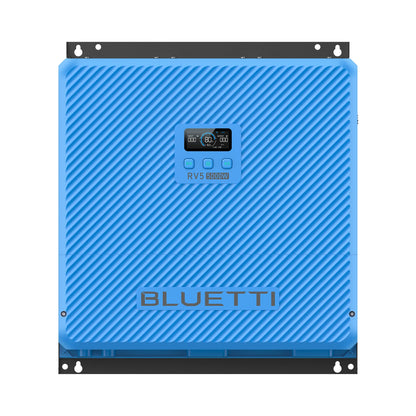

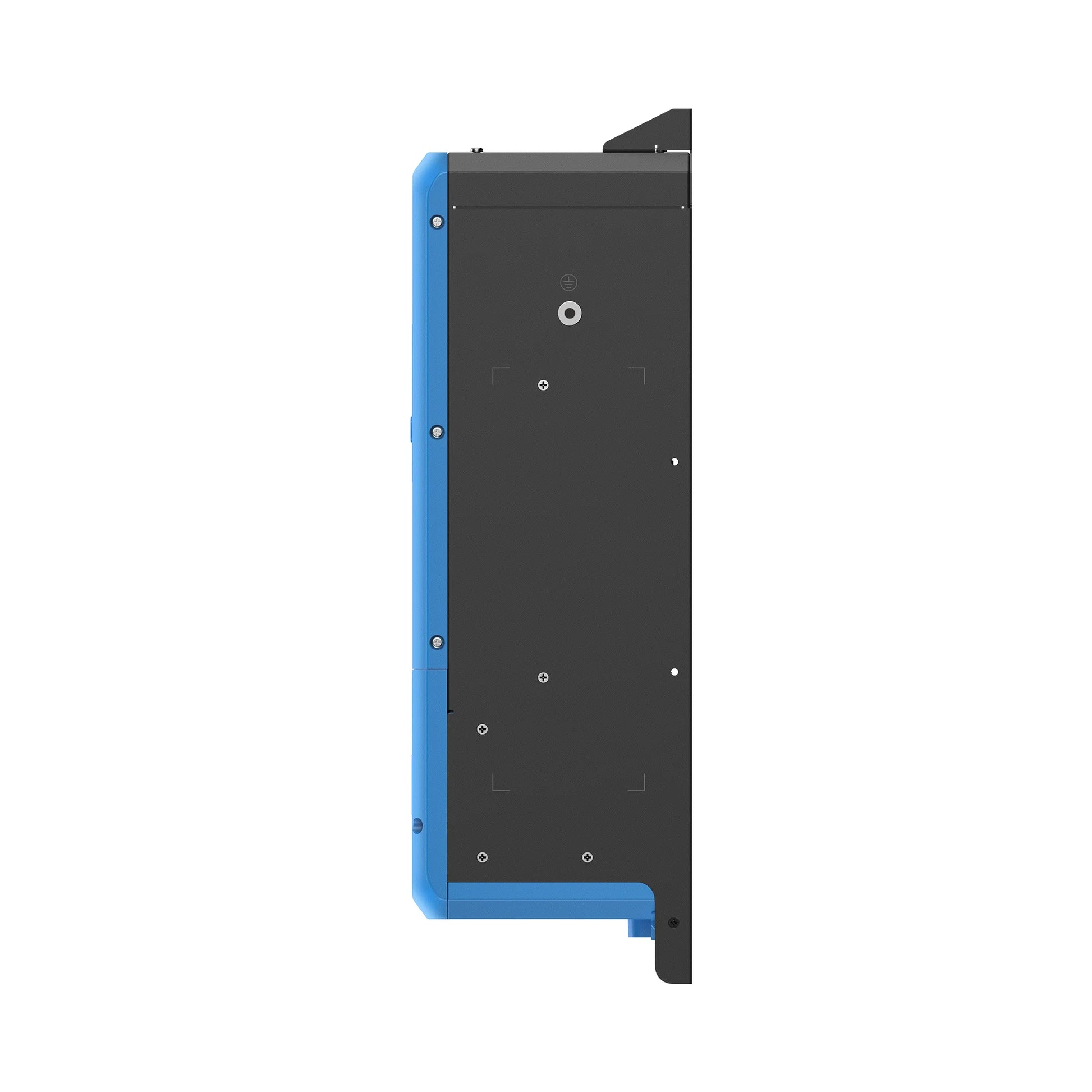

RV5 Power Hub
RV5 Power Hub
Couldn't load pickup availability
- No More "One-at-a-Time": With 5,000W, run your A/C, microwave, coffee maker, and more all at once.
- 10+ Years of Reliable Power: Advanced LiFePO4 battery with 6,000+ cycles, built for the long road ahead.
- Charge Anywhere: Up to 1,800 W solar, 1,200 W from your vehicle's alternator, or a fast 5,000 W from shore power. Never run out of juice.
- Easy Setup for All: Plug-and-play design that's easy for everyone, even first-time RVers.
- Generator-Free Peace: No noise, fumes, or maintenance—just quiet, natural surroundings.
- Travel with Confidence: UL-certified and IP65 water-resistant, designed to tackle road bumps and spills with ease.
- Easy Control in Your Hands: Monitor and manage via Epad or the BLUETTI app.
RV5 Power Hub
AC Input
-
Rated Input Voltage
Standard AC Input (N/L1/G) - 120 V EV Input (L1/L2/G) - 208V
-
UPS
Switchover time ≤20ms
-
Charging Power
5,000W Max. (limited by the battery terminal's maximum current)
AC Output
-
Rated Output Voltage
120V
-
Rated Output Current
42A
-
Rated Output Power
5,000W
Solar Charging(PV1/PV2)
-
Max. Input Power
1,800W
-
Input Voltage
12V to 50V
-
Max. Input Current
50A
Vehicle Charging(PV2)
-
Max. Input Power
600W (12V) / 1,200W (24V)
-
Input Voltage
12V to 14.4V (12V battery) 24V to 28.8V (24V battery)
-
Max. Input Current
50A
DC Output
-
Rated Output Voltage
12V/24V
-
Rated Output Current
100A (12V) 60A (24V)
-
Rated Output Power
1,360W (12V) 1,620W (24V)
-
Total Load Power
6,000W Max. (varies based on battery type and quantity)
-
AC+DC Input Power
6,000W Max.
GENERAL
-
Weight Approx.
30.86lbs (14kg)
-
Dimensions
17.72 × 19.69 × 6.30in (450 × 500 × 159.9mm)
-
Operating Temperature
-4°F to 131°F (-20°C to 55°C)
-
Storage Temperature
-4°F to 104°F (-20°C to 70°C)
-
Operating Humidity
95% Max.
-
Certification
UL458
-
Warranty
5Y
IN THE BOX
-
RV5 Power Hub
x 1
-
M8 Wood Screw
x 8
-
Anchor
x 8
-
Drilling Template
x 1
-
User Manual
x 1
