Parks & Pathway Lighting

SELS’ smart pathway lighting (SP-Series) features fully integrated lighting
and security systems. Combining unique and modern designs with highly
functioning engineering provides ideal systems. The SPSeries offers a solution to a wide range of area and site lighting needs.
Incorporating photovoltaic power collection and storage with smart energy
management as well as programmable LED lighting controls. Perfect for
illuminating walking paths and potential hazards while offering a small
carbon footprint and robust construction for years of reliable service.

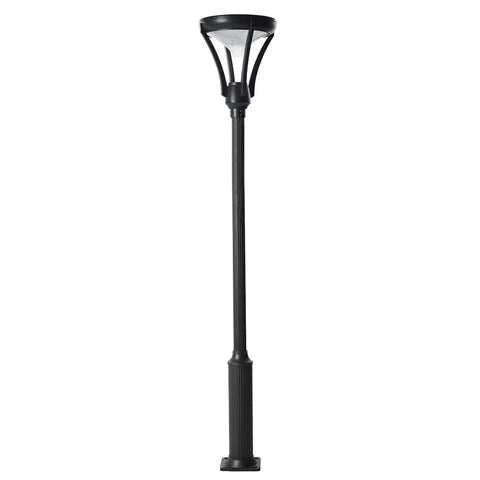

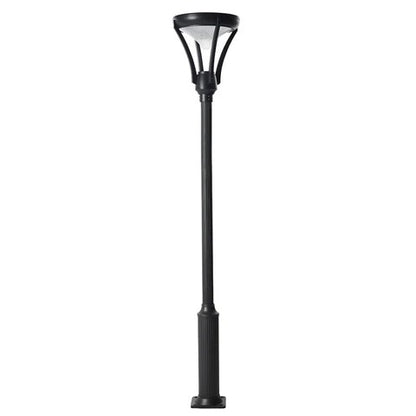

SP9555 PARK LIGHT

STANDARD SPECIFICATIONS

HOUSING
The sleek, modern styling is constructed entirely of
die-cast aluminum.
LENS / DIFFUSER
UV stabilized polycarbonate panel covering LED array.
Premium materials won’t yellow or crack.
LAMP PERFORMANCE – 5000K STANDARD
14W LED Array – 1800lm – 5000K – 85 CRI – L80 rating:
75,000 hrs
Operating Ambient Temperature: -25o
C – 65o
C | -13o
F –
149o
F
36hrs Autonomous Operation – Automatic On/Off –
Assured Operation When Installed In Direct Sun
POWER COLLECTION
33W Monocrystalline Solar Panel – 20.2% Efficiency
POWER STORAGE
12.8V LiFePO4 Battery – 20Ah – 2,000 Cycle Rating
MOUNTING
Has a fitter designed for 3” diameter poles. Comes with
optional 6.5’ aluminum pole (Total Height: 8.2 ft).
FINISH
Available in various color options; polyester powder coat.
WARRANTY
Accompanied by 5 year limited warranty.
For ordering or questions please contact SELS USA at
704-495-3535 or CustomerService@SELSLED.com

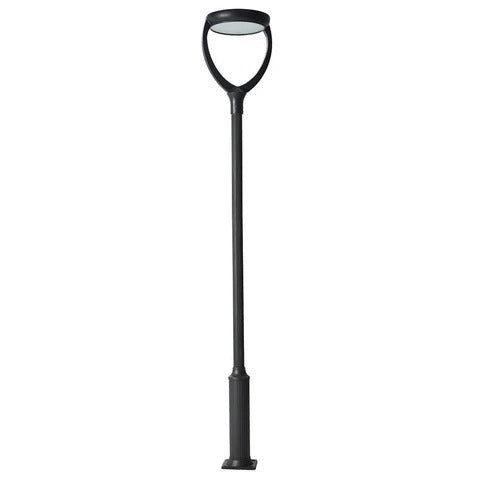

SP9556 PARK LIGHT

STANDARD SPECIFICATIONS

HOUSING
The sleek, modern styling is constructed entirely of
die-cast aluminum.
LENS / DIFFUSER
UV stabilized polycarbonate panel covering LED array.
Premium materials won’t yellow or crack.
LAMP PERFORMANCE – 5000K STANDARD
14W LED Array – 1800lm – 5000K – 85 CRI – L80 rating:
75,000 hrs
Operating Ambient Temperature: -25o
C – 65o
C | -13o
F –
149o
F
36hrs Autonomous Operation – Automatic On/Off –
Assured Operation When Installed In Direct Sun
POWER COLLECTION
33W Monocrystalline Solar Panel – 20.2% Efficiency
POWER STORAGE
12.8V LiFePO4 Battery – 20Ah – 2,000 Cycle Rating
MOUNTING
Has a fitter designed for 3” diameter poles. Comes with
optional 6.5’ aluminum pole (Total Height: 8.2 ft).
FINISH
Available in various color options; polyester powder coat.
WARRANTY
Accompanied by 5 year limited warranty.
For ordering or questions please contact SELS USA at
704-495-3535 or CustomerService@SELSLED.com

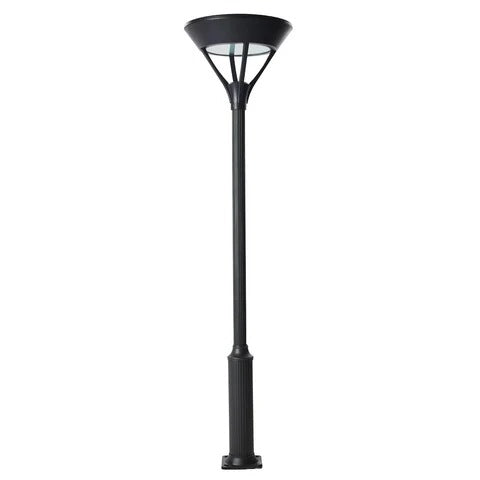

SP9557 PARK LIGHT

STANDARD SPECIFICATIONS

HOUSING
The sleek, modern styling is constructed entirely of
die-cast aluminum.
LENS / DIFFUSER
UV stabilized polycarbonate panel covering LED array.
Premium materials won’t yellow or crack.
LAMP PERFORMANCE – 5000K STANDARD
20W LED Array – 2600lm – 5000K – 85 CRI – L80 rating:
75,000 hrs
Operating Ambient Temperature: -25oC – 65oC | -13o
F –
149o
F
36hrs Autonomous Operation – Automatic On/Off –
Assured Operation When Installed In Direct Sun
POWER COLLECTION
High-efficiency monocrystalline PV module
POWER STORAGE
Long life LiFePO4
battery – 2,000 Cycle Rating
MOUNTING
Has a fitter designed for 3” diameter poles. Comes with
optional 10’ pole (Total Height: 11.5 ft).
FINISH
Available in various color options; polyester powder coat.
WARRANTY
Accompanied by 5 year limited warranty.
For ordering or questions please contact SELS USA at
704-495-3535 or CustomerService@SELSLED.com

SP9570 PARK LIGHT

STANDARD SPECIFICATIONS

STRUCTURE
Sleek, modern styling constructed entirely of
high strength steel and aluminum.
LENS / DIFFUSER
UV stabilized polycarbonate panel covering LED array.
Premium materials won’t yellow or crack.

LAMP PERFORMANCE – 5000K STANDARD
15W LED Array – 1,950Lm – 4000K – 85 CRI
L70 rating: 100,000 hrs
Operating Ambient Temperature: -25o
C – 65o
C | -13o
F – 149o
F
50hrs+ Autonomous Operation – Automatic On/Off
Real Time Clock Operation – Auto-Adjustment for Seasonal
Changes
POWER COLLECTION
65W Monocrystalline Solar Panel – 22.8% Efficiency
POWER STORAGE
AdvancedLiFePO4 Battery – 460W-h – 2,000 Cycles
MOUNTING
Anchor Base | Accepts up to 5/8” bolts. Inluding
powder-coated pole (Total Height 12’ 4”)
FINISH
Available in various color options; polyester powder coat.
WARRANTY
Accompanied by 3 year full warranty.
For ordering or questions please contact SELS USA at
704-495-3535 or CustomerService@SELSLED.com
